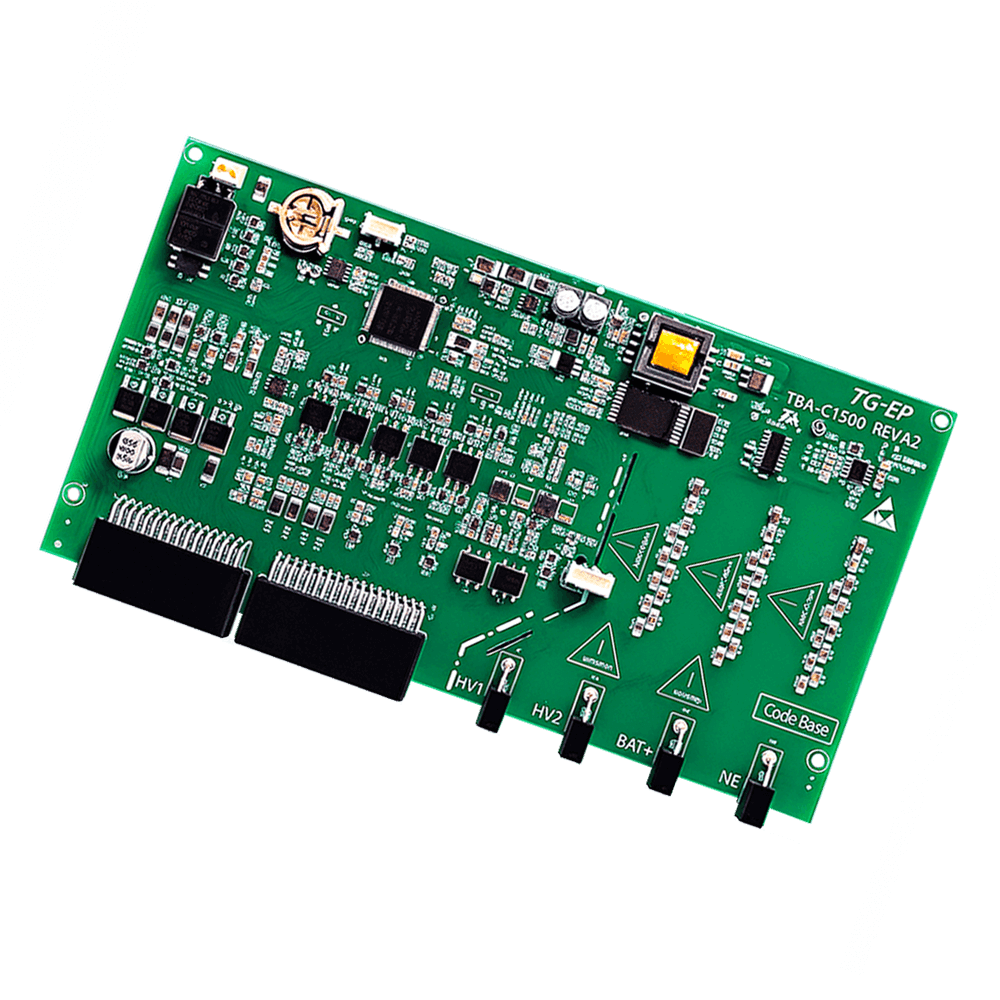

TBA-C1500
Commercial and industrial energy storage, high-voltage home energy storage secondary control BCU
Supports CAN, RS485, RS232, WIFI/4G/Bluetooth (optional), compatible with mainstream inverters, using high-performance chips.
Product Features
Two/Three-tier control architecture with modular design for flexible configuration.
01
Supports mobile apps & cloud platforms for cloud security management, collaborative balancing, and remote OTA.
02
Rich interfaces: Dry contacts/RS485/CAN/TCP enabling single-cluster or parallel multi-cluster control.
03
Parameter
| Model | TBA-C1500 |
| Category | Battery cluster controller |
| Operating voltage | 12V/24V |
| Number of clusters | ≤16 clusters |
| Operating temperature range | -40~125℃ |
| Data storage quantity | 1000 (expandable) |
| Performance indicators | Voltage detection accuracy: ≤±0.5%FSR |
| Current detection accuracy: ±2%; when below 50A, error≤1A | |
| Temperature detection accuracy: ≤±2℃ | |
| Communication | SPI, CAN, RS485, Ethernet/WIFI/4G/Bluetooth(Optional) |
| Basic function | Insulation detection, Automatic coding, Over-undervoltage protection, Overcurrent protection, Overtemperature protection, Balance |
| Upgrade method | Local/Remote |
Dimensions
