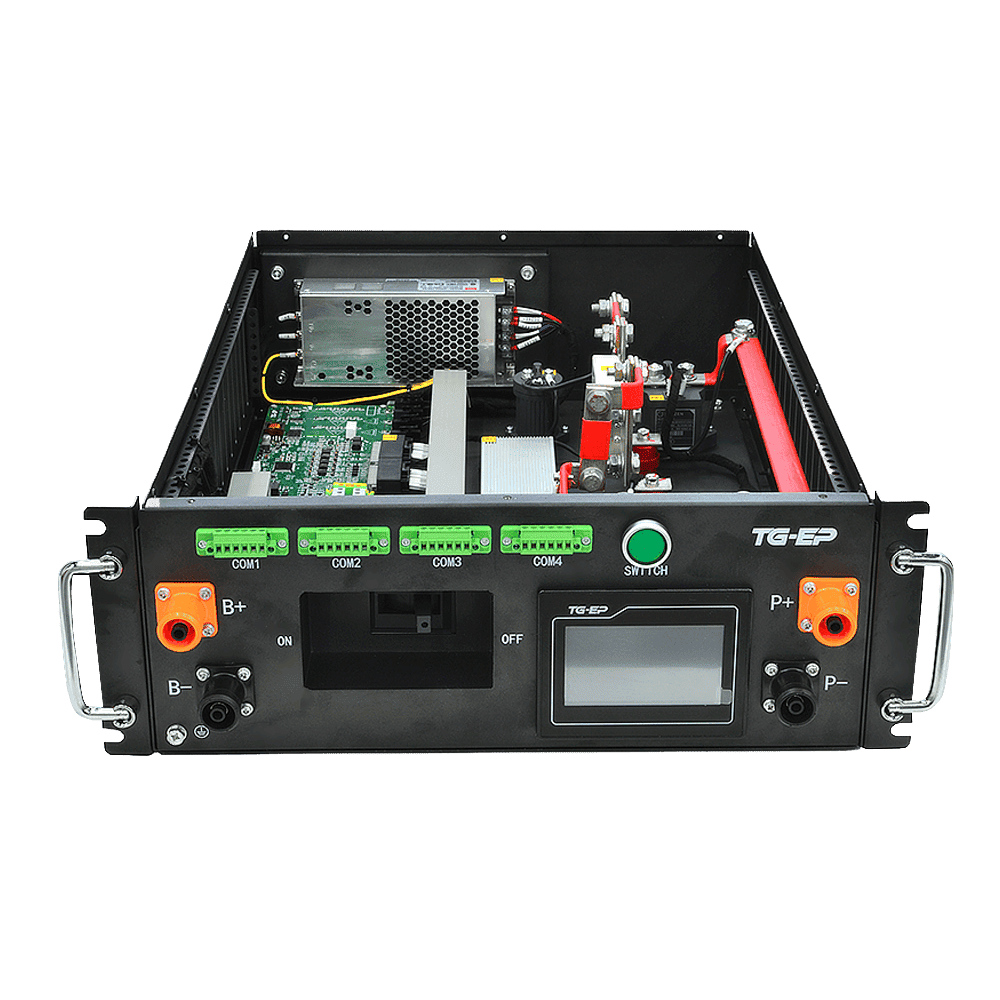

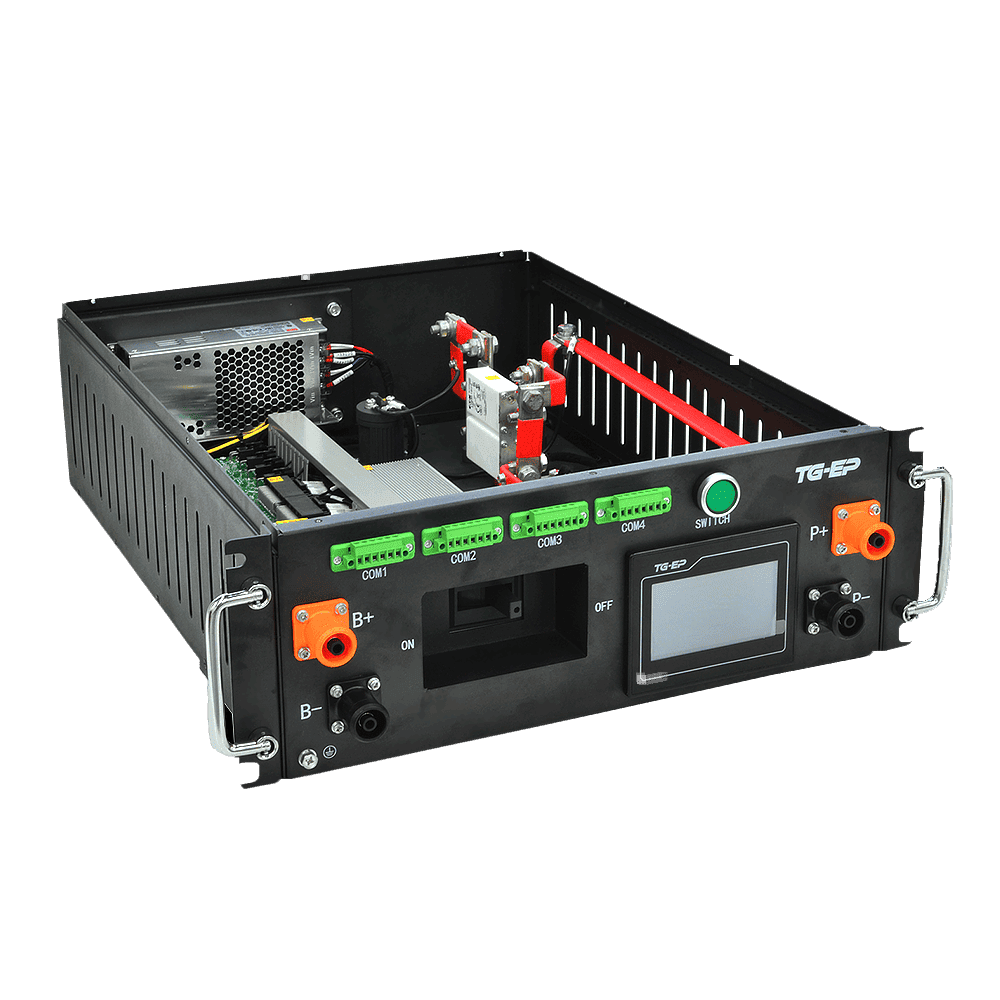

TB-PD1000
High voltage control integrated unit, 500V/1000V/1500V specifications are optional, supporting customized requirements of different voltage levels.
Product Features
DC circuit breaker with trip function. 2.Supports CAN/RS485/SPI communication.
01
Fault diagnosis: Fuse failure, relay adhesion, relay open-circuit.
02
4.3 /7 inch display showing operation/alarm/fault status.
03
Controllable DC24V power output.
04
Temperature monitoring at key contact points ensures reliability.
05
.Redundant safety strategies: Total battery voltage, backend voltage, etc.
06
.Black start capability & off-grid operation mode; Complies with UL/CE certification.
07
Parameter
| Model | 500V100A/250A | 1000V250A | 1500V250A |
| Applicable Systems | ＜500V | ＜1000V | ＜1500V |
| Current | 100A/250A | 250A | 250A |
| Communication Interface | 3*CAN 2*RS485 2*Daisy chain | 3*CAN 2*RS485 2*Daisy chain | 3*CAN 2*RS485 2*Daisy chain |
| Dimensions | 720*569*255mm | 580*440*170mm | 510*415*210mm |
| IP rating | IP20 | IP20 | IP20 |
| Safe | Supports multiple redundant safety strategies includes total battery voltage and rear-end total voltage. Supports black-start function and off-grid operation mode. Component selection with UL/CE dual-certification. | ||
Dimensions
