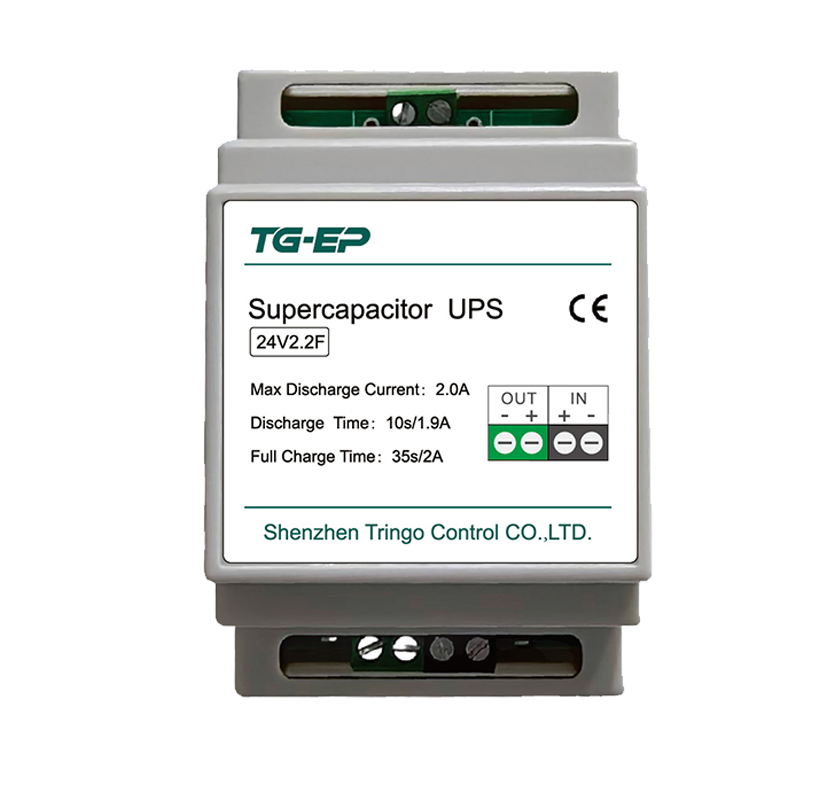

Supercapacitor UPS
Supercapacitor UPS is a type of super capacitor UPS. It can solve the problem of unstable power supply lines for PLC, industrial control hosts, and automation control units. When the equipment experiences a voltage drop during operation, causing the power supply to the control unit to fail to meet the working requirements, the UPS unit can provide instantaneous compensation. After the power outage, it can provide emergency energy to the control unit to preserve the on-site data and safely shut down.
Suitable for short-duration backup, telecom and data center scenarios,automatic grid change-over, industrial control,electrical cabinet integration and emergency power applications.
Product Features
Wide Operating Range
Operating temperature range: -40°C to 65°C, suitable for various application scenarios.
Compact Size, Easy Installation
Extremely small footprint and compatible with standard DIN rails, making it ideal for installation in compact enclosures.
Comprehensive Protection Functions, Reliable Performance
The product offers multiple protection features for reliable operation, including:Charge current limiting,Reverse connection protection,Overvoltage protection,Overload protection,Short-circuit protection,Active balancing
Safe, Efficient, Long Lifespan
High conversion efficiency, environmentally friendly, safe, and extended backup duration.Utilizes supercapacitor storage, capable of up to 500,000 charge/discharge cycles.
Parameter
| Model number | upeSrcapacitor UPS |
| Rated inputvoltage:DC | DC12/24V |
Maximum inputcurrent | DC5A |
Rated outputvoltage | DC12/24V |
Rated outputcurrent | DC12/24V |
Workingtemperature | -40-65°C |
Work humidity | < 95% free of condensation |
Altitude | <2000 meters |
| Cycle life | ＞500,000 times |

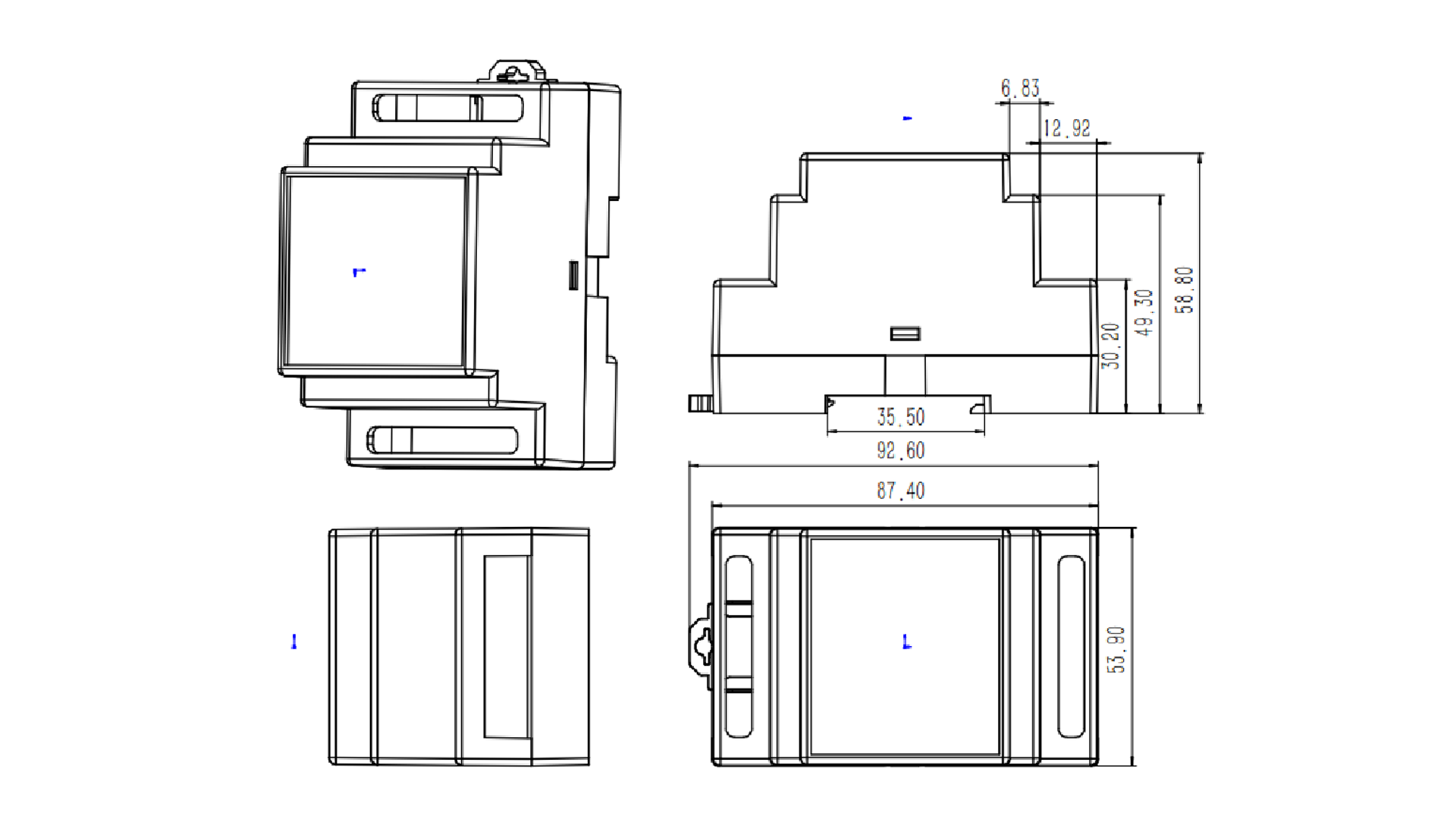

Product dimensions diagram
