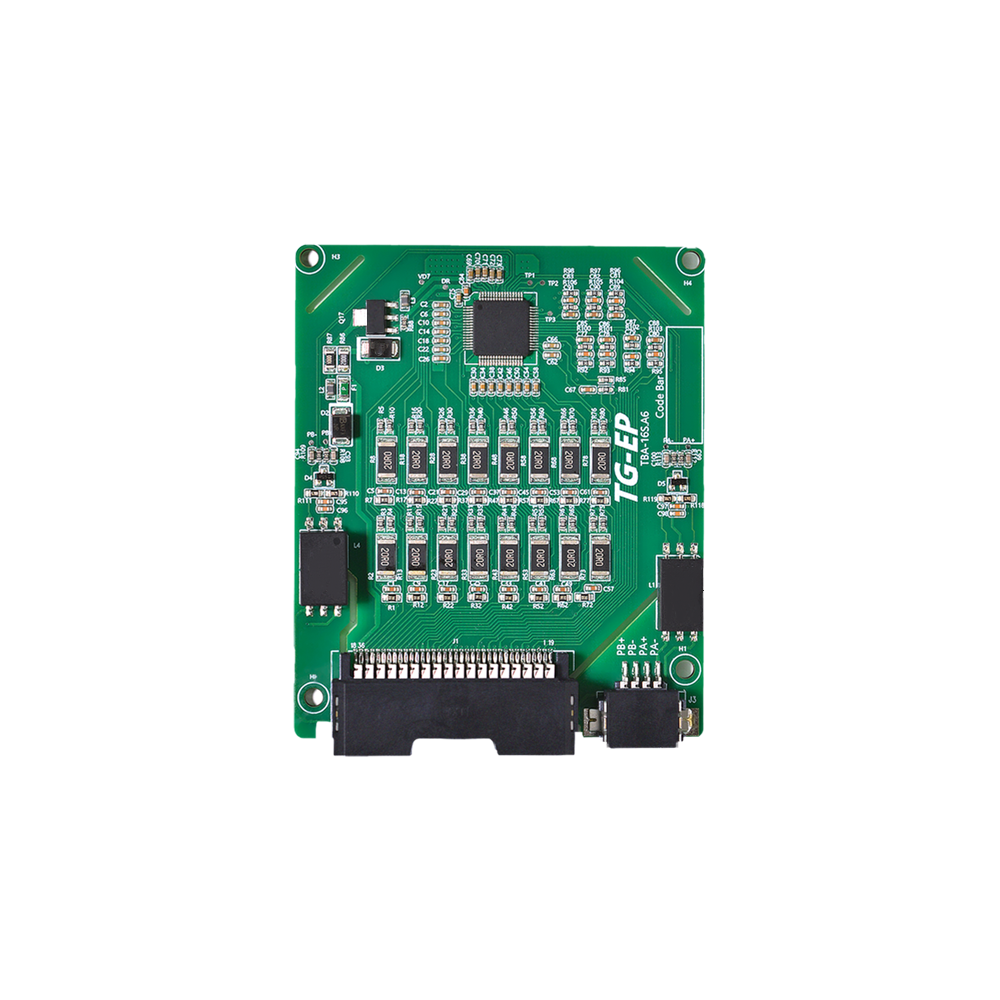

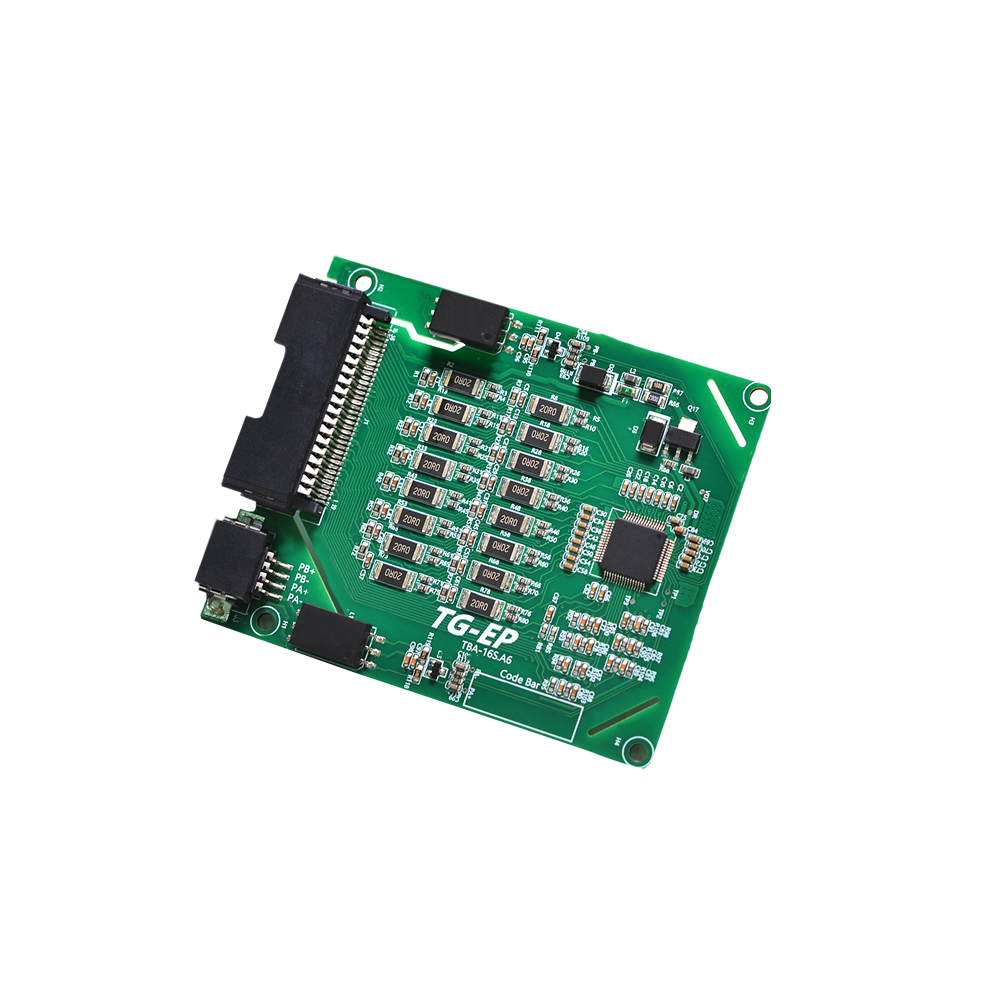

TBA-M16S
Battery Module Controller for C&I energy storage and high-voltage residential ESS.
High-precision sampling, 16-channel battery voltage sampling, 7-channel battery temperature sampling, support daisy chain communication mode.
Including multi-fault alarm and protection function
Optional: different sizes of HMI displays, WIFI/4G function.
Product Features
High-reliability AFE battery management chip.
01
High-precision voltage & temperature sampling.
02
Isolated and Secure Communication
03
Parameter
| Model | TBA-M16S |
| Category | Battery module controller |
| Operating voltage | 36V-60V |
| Number of clusters | / |
| Operating temperature range | -40~125℃ |
| Data storage quantity | / |
| Performance indicators | Voltage detection accuracy: ≤±10mV |
| Temperature detection accuracy: ≤±2℃ | |
| Communication | SPI,CAN |
| Basic function | Cell voltage acquisition, |
| Cell temperature acquisition |
Dimensions
