TH-ED300 Series

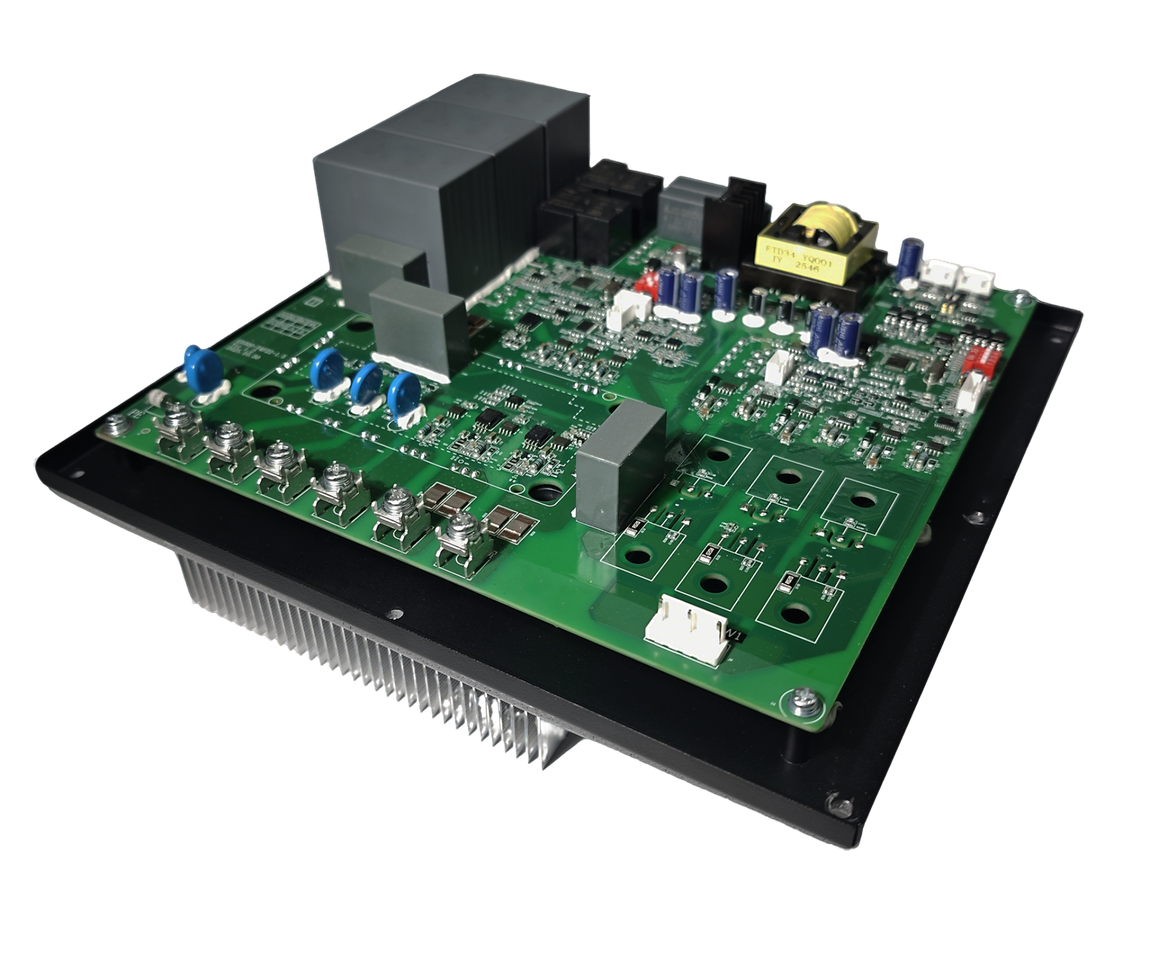

TH-ED300 independently drives the compressor and fan for HVAC, heat pump and thermal management systems, with 380-480 VAC input, RS485 Modbus and reliable protection.

Home > Products > TH-ED300 Series

Product Features

Dual-Inverter Drive Architecture

Independent compressor and fan inverter outputs simplify system design and improve matching between load demand, compressor capacity and fan operation.

Smooth Sensorless SVPWM Control

Sensorless SVPWM sinusoidal control reduces harmonics, vibration, torque ripple and noise for smooth operation.

Wide Speed Regulation Range

10-130 rps compressor speed regulation supports low-load to high-load HVAC and heat pump operation.

Comprehensive Protection Suite

Built-in protection covers current, voltage, temperature, phase loss, overspeed, startup and sensor faults.

Parameter

Parameter Item	ED300-T4F15-1.5	ED300-T4F22-1.5
Product Category	Thermal Management VFD Controller	Thermal Management VFD Controller
Operating Voltage	Three-phase 380-480 VAC ±15%, 50/60 Hz	Three-phase 380-480 VAC ±15%, 50/60 Hz
Maximum Output Power	Main drive: 23 kW; Auxiliary drive: 2 kW	Main drive: 32 kW; Auxiliary drive: 2 kW
Maximum Input RMS Current	Main drive: 35 A; Auxiliary drive: 6 A	Main drive: 48 A; Auxiliary drive: 6 A
Output Mechanical Frequency Range	10-130 rps	10-130 rps
Efficiency	96%	96%
Communication Interface	RS485, Modbus	RS485, Modbus
Cooling Method	Forced air cooling	Forced air cooling
Operating Environment	-30°C to +55°C; 5%-95% RH	-30°C to +55°C; 5%-95% RH
Storage Environment	-40°C to +70°C; 5%-95% RH, non-condensing and dust-free	-40°C to +70°C; 5%-95% RH, non-condensing and dust-free
Altitude	≤1000 m without derating; above 1000 m derate 1% per 100 m; maximum 3000 m	≤1000 m without derating; above 1000 m derate 1% per 100 m; maximum 3000 m
Compressor Motor Compatibility	Induction motor, BLDC motor, PMSM	Induction motor, BLDC motor, PMSM
Fan Motor Compatibility	BLDC motor	BLDC motor

Dimensions

TH-ED300 Series
